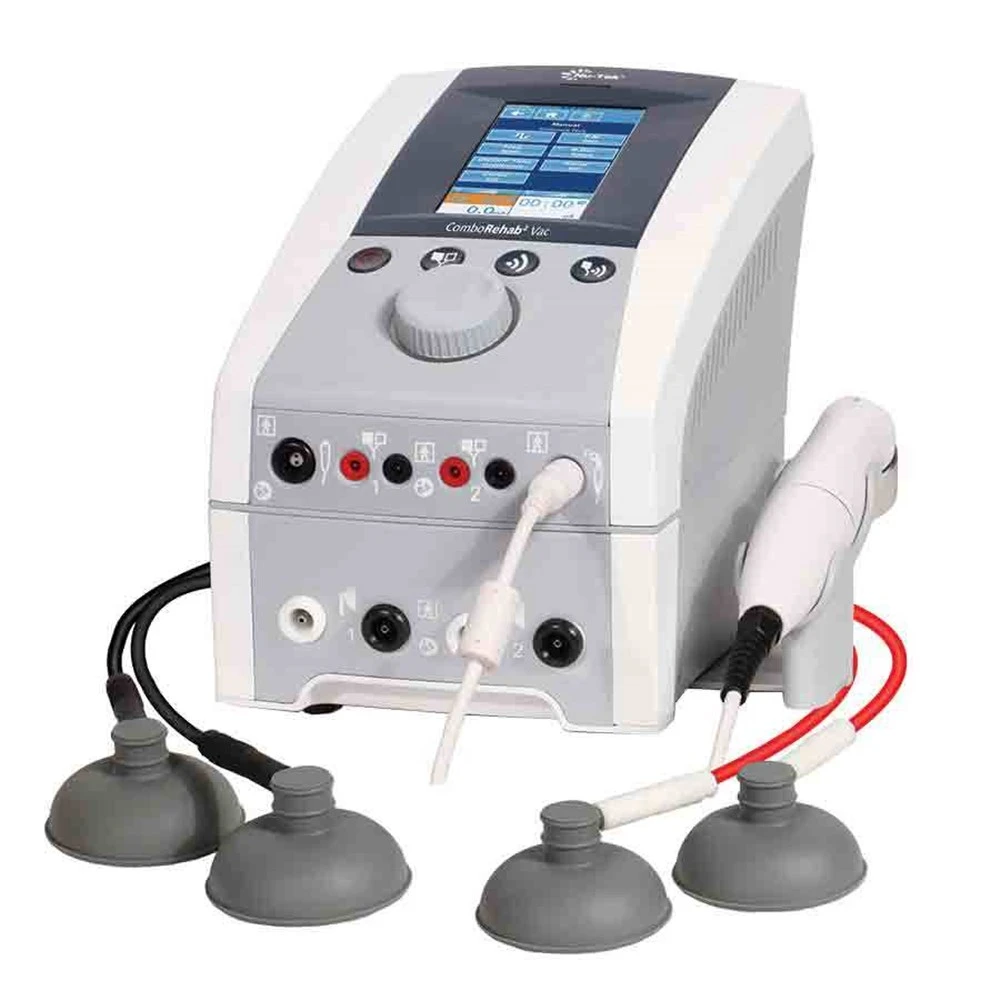

Nu-Tek Combination Unit With Vacuum

Combination Electrotherapy, Ultrasound and Vacuum

Features:
4 pole vacuum connections supported
Touch screen for simple operation
Two channel simultaneous monitoring
Multi frequency ultrasound (1/3 MHz, each probe) and eight stimulation modes such as 4-pole IF, 2-pole IF (Premode), EMS, Russian, BipHasic (TENS), Hi-Volt, Microcurrent (MCR) and DC
Independent electrotherapy (ES) and ultrasound (US) channel, independent US while using ES, and a combination of US and ES supported
62 preset programs and 80 custom programs

Specifications:
Power supply: AC100-240V +/- 10% 50/60 Hz
Number of channels: 2 for electrical stimulation and 1 for ultrasound
Current amplitude (Max): 200 mA (peak)
IF carrier frequency: 2 – 10 kHz
Ultrasound intensity (Max): 3 W/cm2
Ultrasound frequency: 1 and 3 MHz each probe
Dimensions: 285mm (L) x 197mm (W) x 153mm (H)
Weight: 2kg
Certification: FDA clearance, EU MDD, CFDA, TGA, CMDCAS, Russian approved

Includes:
Vacuum electrodes 60mm
Vacuum sponges 60mm
Vacuum hose lead (red)
Vacuum hose lead (black)
Patient switch
Holder for ultrasound head
Nu-Tek ultrasound head 5cm
Power cable
Rubber electrodes – 60 x 90mm (x2)
Rubber electrodes – 70 x 110mm (x2)
Envelope sponges – 70 x 100mm (x2)
Envelope sponges – 80 x 120mm (x2)
Self adhesive electrodes – 50 x 50mm (x4)
Self adhesive electrodes – 50 x 100mm (x4)
Straps – 75 x 1200mm
Straps – 75 x 600mm
Stim leads (x2)
User manual
