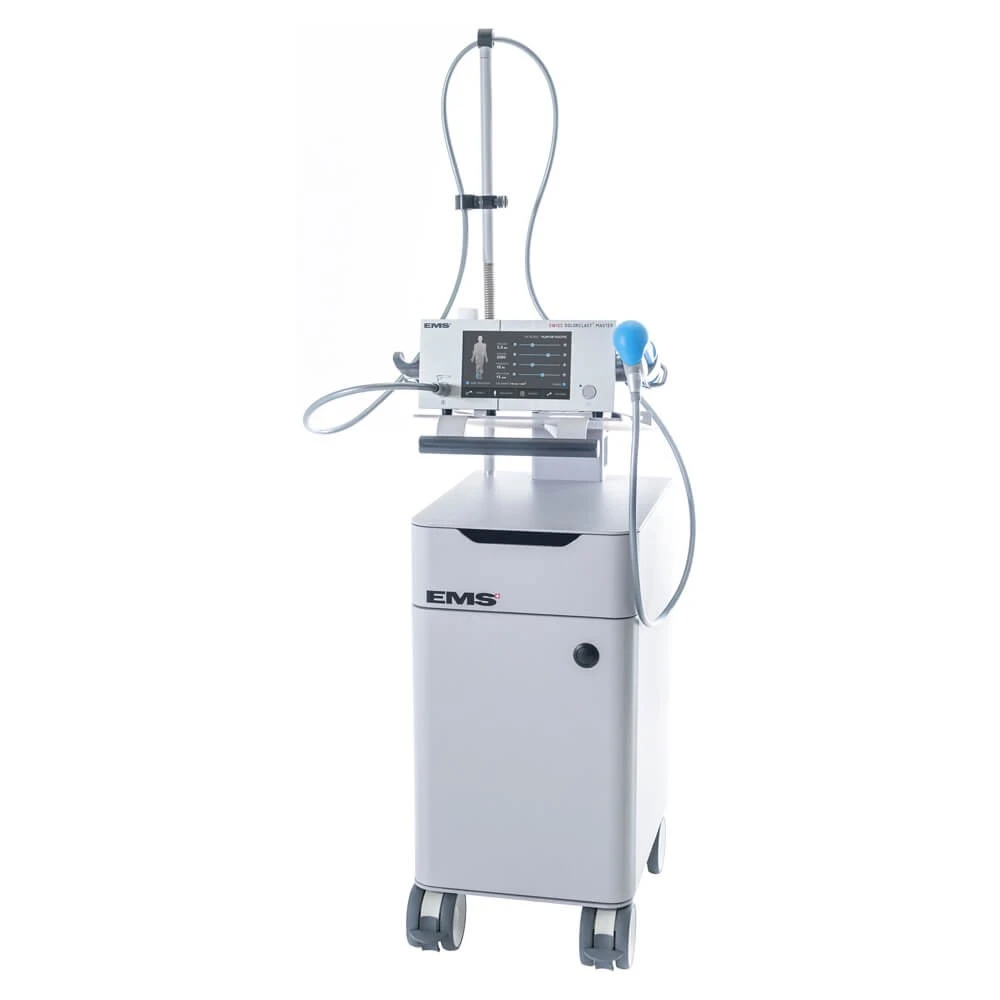

EMS Swiss Dolorclast Master Touch Evo Shockwave

• 17 ready-to-treat protocols with preset recommended settings, pictures and video
• First and only one device to feature an air pressure vs energy density (ED) converter. This option automatically calculates the ED output (in mJ/mm²) corresponding to the air pressure level (in bar) chosen for the treatment
• Visual Analog Scale (VAS) option to track pain reduction throughout treatments
• Up to 200 logs for tailored treatment protocols
• Up to 3000 patient files stored with automatic treatment history recording
• Comprehensive therapeutic guide with anatomical and clinical definition, list of published clinical studies, contra-indications and risks
• Display of an energy meter on working screen to follow at anytime the energy released to the tissues
• Automatic recognition of the Swiss DolorClast® Evo Blue handpiece
• USB memory port to upgrade software and export database and statistics
• Password option for more safety

TECHNICAL FEATURES
MANUFACTURER	EMS Electro Medical Systems SA
TECHNOLOGY	Radial ESWT pneumatic with external compressor
CONTROLS	Colour Touchscreen
FREQUENCY RANGE	1 – 20 Hz (increment of 1 Hz)
AIR PRESSURE RANGE	1.5 – 4 bar (increment of 0.1 bar)
IMPULSE RANGE	500 – 10000 (increment of 500 impulses)
ENERGY OUTPUT	Positive Energy Density
EVO BLUE HANDPIECE	15mm: Up to 0.18mJ/mm2 15mm focus: Up to 0.28mJ/mm2
POWER+ HANDPIECE	15mm: Up to 0.4 mJ/mm2 15mm Focus: Up to 0.55 mJ/mm²
CAVITATION	Increases with frequency, down to 4 cm

WHAT’S IN THE BOX

• 1 console
• 1 EVO BLUE handpiece
• 1 cart with gel bottle and cable holder
• 1 oil compressor
• 1 USB flash drive
• 1 gel bottle
